Supplied and fitted at our workshop in Newton Abbot, Devon
Product Description
This package is the flagship non-DSP solution for Porsche audio enthusiasts who want uncompromising quality across the entire cabin. It builds on our proven 3-way front stage design by adding a dedicated rear upgrade, resulting in an immersive sound experience for both driver and passengers.
At the front, we install the Audison Voce II AV 1.1 tweeters and Voce II AV 3.0 mids, renowned for their natural timbre, hand-crafted materials, and reference-grade tuning. These are paired with the Audison Prima AP 8 woofers, which handle low-mid and mid-bass duties with authority, producing the kind of punchy yet controlled bass response that most factory Porsche systems simply cannot achieve.
In the rear, Audison APBMW X4M coaxials provide matching tonal quality and detailed rear fill, ensuring passengers hear the same refined clarity as the driver. Together, these components create a balanced, room-like soundstage — imaging is locked in front of the listener, while rear channels add spaciousness and depth.
Powering the system is the Audison SR 6.600 6-channel amplifier, mounted discreetly within the vehicle. Unlike the restricted factory amplifier, the SR delivers dedicated clean power to each driver, reducing distortion and dramatically improving dynamics. Even at higher volumes, instruments remain clear, vocals remain rich, and bass remains tight.
The installation is finished with our Enhanced 3-Layer Skinz Acoustic Package, which transforms the
Porsche doors into acoustically tuned enclosures. This includes:
Skinz Expert damping sheets (3mm V2) applied to inner/outer panels to eliminate resonance and vibration.
Skinz WaterGuard 200 membranes to protect drivers from moisture ingress, vital for longevity in door-mounted Porsche woofers.
Skinz WaveLiner acoustic foam (15mm) to absorb internal reflections and block road/tyre noise, lowering the cabin noise floor.
The result is not just a louder or clearer system, but a Porsche cabin that feels quieter, more refined, and more premiumoverall — perfect for high-speed touring or everyday driving.

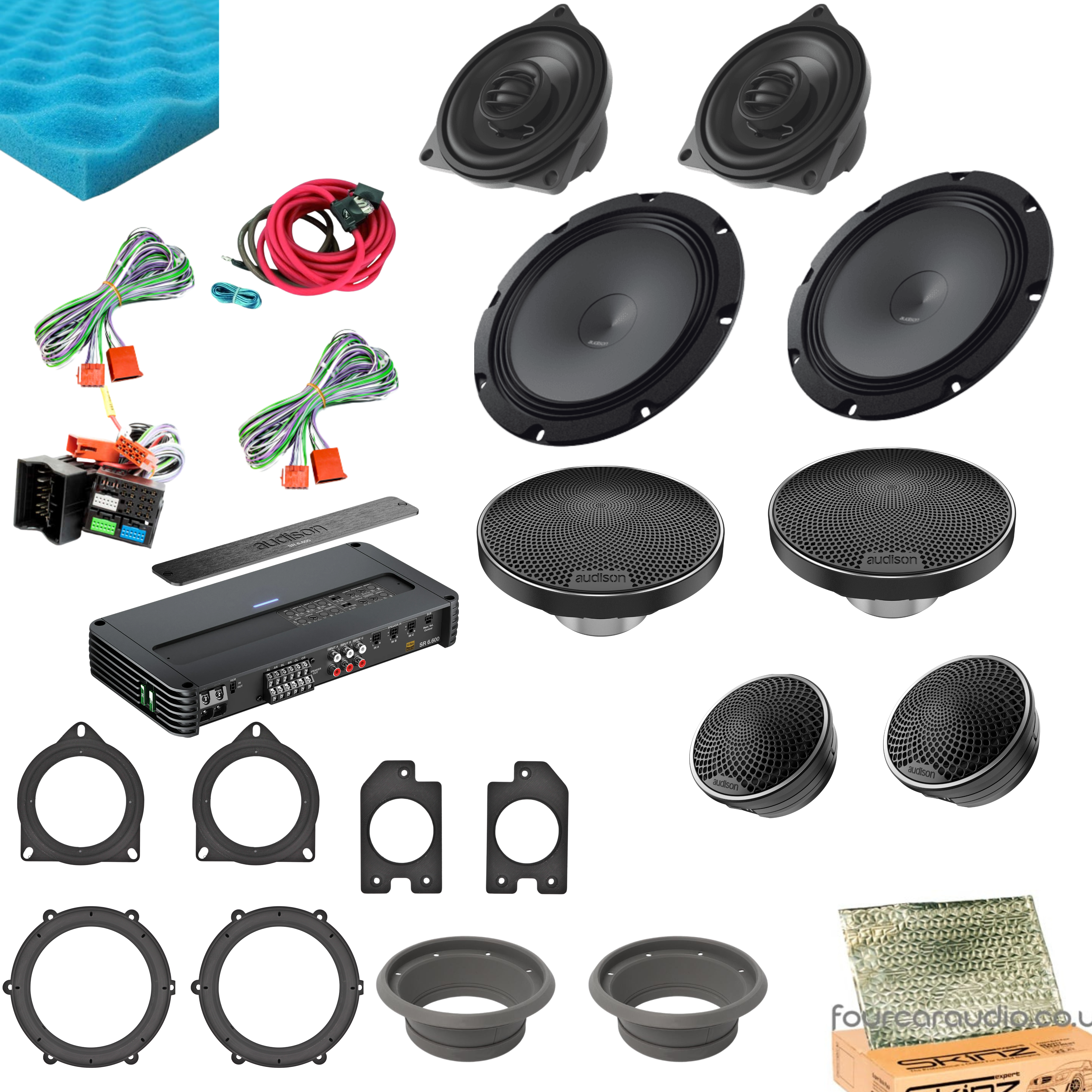

What’s Included
Front Stage:
Audison Voce II AV 1.1 tweeters (1.1” silk dome, hand-coated)
Audison Voce II AV 3.0 mids (3” reference-class midrange)
Audison Prima AP 8 woofers (8” Porsche-specific bass drivers)
Rear Stage: Audison APBMW X4M coaxials (4”)
Amplifier: Audison SR 6.600 Class D 6-channel amplifier
Porsche-specific mounting: Q+ 3D mounts (tweeter/mid/woofer)
OEM integration harnesses: AP T-H AVS02 + Q+ ISO extensions
Premium wiring: CONNECTION First FPK 350 OFC kit
Enhanced 3-layer Skinz soundproofing applied to all four doors
Supplied & fitted with a 5-year parts and labour warranty
Speaker Specifications – Front
Voce II AV 1.1 Tweeters
1.1” silk dome, damped resonance chamber
60W RMS / 120W Peak
1.5kHz–20kHz response
Sensitivity: 92 dB
Voce II AV 3.0 Midrange
3” pressed-pulp cone, optimised basket
80W RMS / 160W Peak
200Hz–3kHz response
Sensitivity: 94 dB
Prima AP 8 Woofer
8” mid-bass woofer with low-profile frame
100W RMS / 200W Peak
40Hz–3kHz response
Sensitivity: 92 dB
Speaker Specifications – Rear
APBMW X4M Coaxials
4” full-range coaxial
60W RMS / 120W Peak
100Hz–20kHz response
Sensitivity: 92 dB
Amplifier Specifications – Audison SR 6.600
Channels: 6
Power: 85W x 6 @ 4Ω | 130W x 6 @ 2Ω | 260W x 3 bridged
Frequency Response: 10Hz–40kHz
THD: <0.02%
S/N Ratio: >100 dB
High/low-level inputs with auto turn-on
Dimensions: 262 x 215 x 50mm
