ETON PA 4 Compact 4-Channel Amplifier

The ETON PA 4 is a compact four-channel amplifier with different power outputs for its two channel pairs. Channels 1 and 2 provide 2 × 45 W RMS at 4 ohms; channels 3 and 4 provide 2 × 80 W at 4 ohms. The higher-power pair can also deliver 2 × 140 W at 2 ohms.

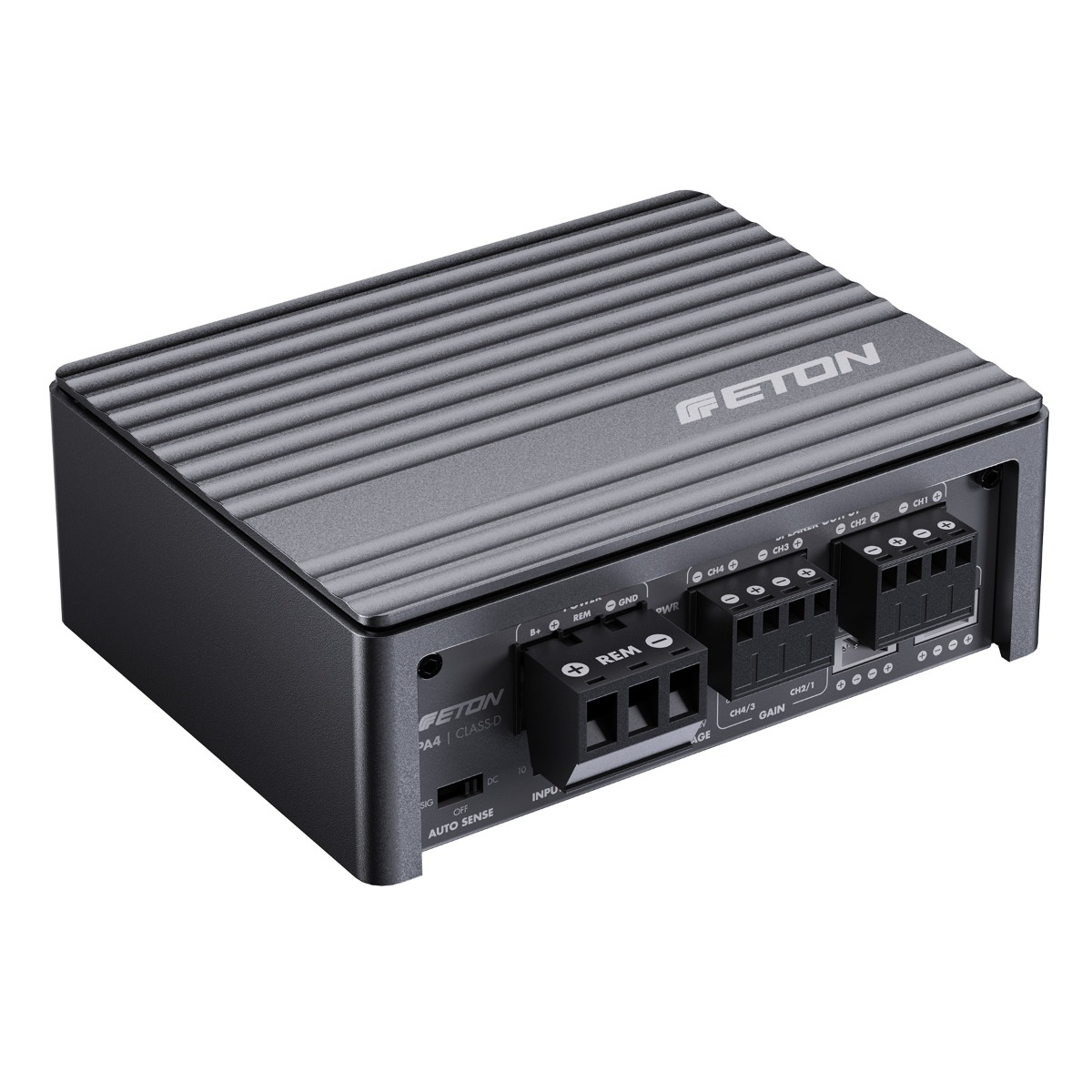

The 128 × 100 × 45 mm aluminium housing contains adjustable high-pass and low-pass filters covering 50 Hz–5 kHz. Removable connectors, adjustable mounting feet and a removable cover help when planning a concealed installation. There is no built-in DSP.

It can power two pairs of suitable speakers. Alternatively, channels 3 and 4 can be bridged for 1 × 280 W RMS into 4 ohms, alongside the two 45 W channels. Channels 1 and 2 cannot be bridged and do not support a 2-ohm speaker load. The channel layout is selected to suit the speakers and the intended system.

Key specifications

• Amplifier type: 4-channel Class-D with unequal channel-pair power

• RMS power at 4 ohms: CH1/2: 2 × 45 W; CH3/4: 2 × 80 W

• RMS power at 2 ohms: CH3/4 only: 2 × 140 W; CH1/2 not supported

• Bridged RMS power at 4 ohms: CH3/4 only: 1 × 280 W; CH1/2 not supported

• High-pass / low-pass filters: 50 Hz–5 kHz, 12 dB per octave

• Built-in DSP: No

• Dimensions (L × W × H): 128 × 100 × 45 mm

• Weight: 0.68 kg

Connecting it to your vehicle

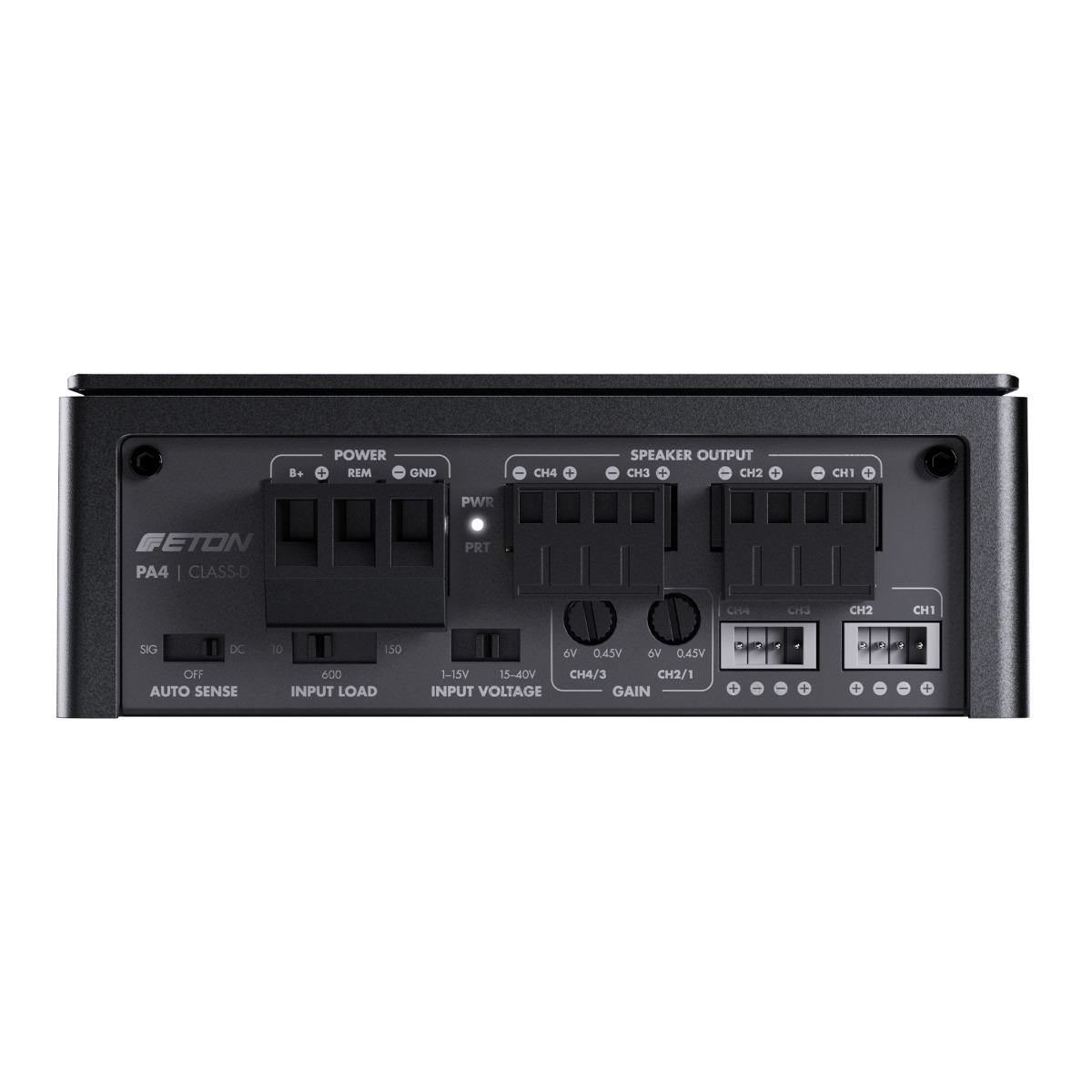

RCA and high-level inputs allow connection to suitable aftermarket stereos or factory speaker signals. Adjustable high-level voltage and input impedance help match the source, and signal/DC detection can switch the amplifier on automatically. These features do not make it a universal plug-and-play fit: a vehicle-specific interface or wiring adaptor may still be required.

Motorquip can check the radio, any factory amplifier, speaker impedance, cable route, mounting space and ventilation before recommending the installation. These amplifiers are for compatible 12 V vehicle systems; start-stop operation is supported within the stated 8.5–15.5 V supply range. They are not direct 24 V truck amplifiers.

Supply and installation

The displayed price is for the amplifier supplied only, including VAT. Installation, power wiring, vehicle interfaces and any additional speakers or subwoofer are quoted separately.
