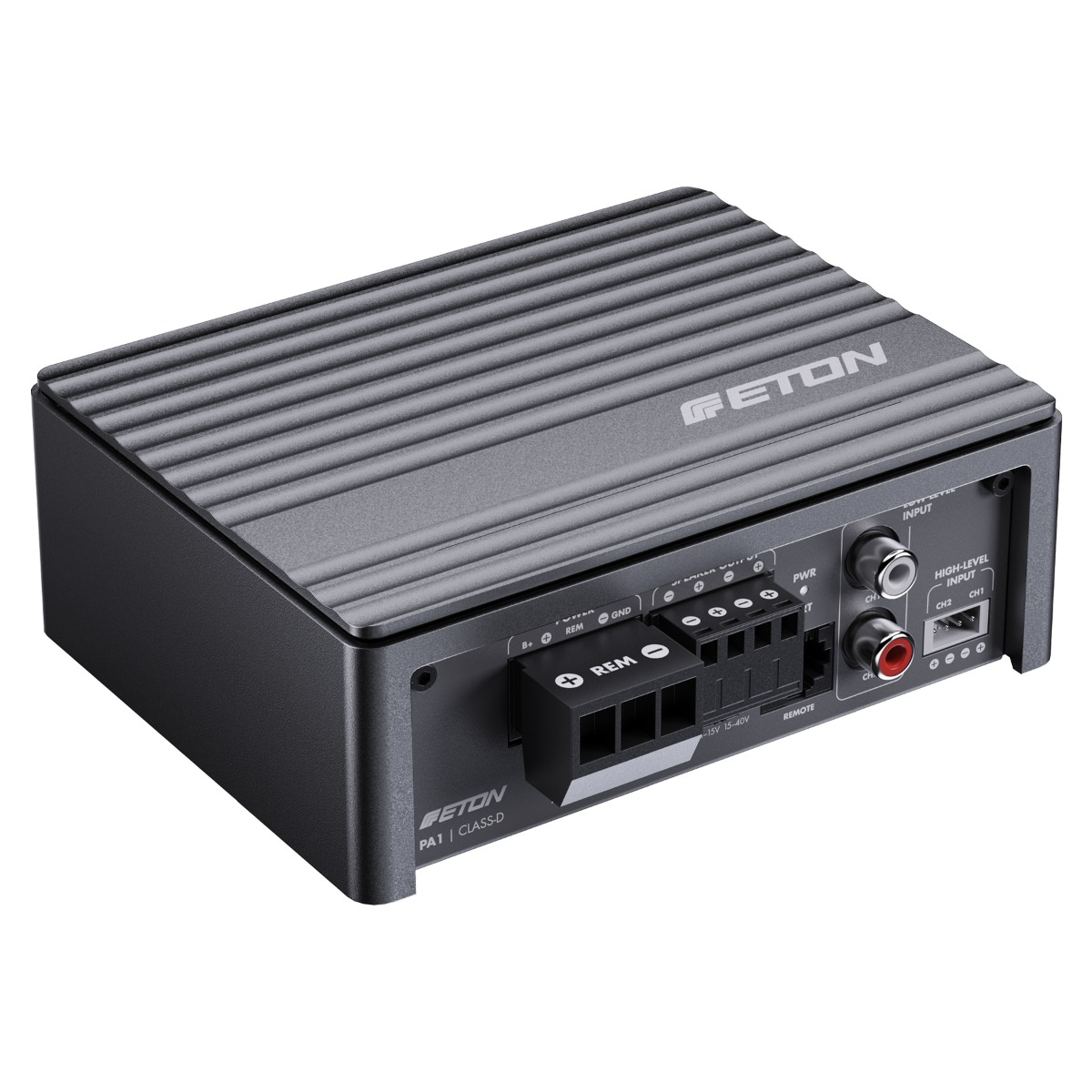

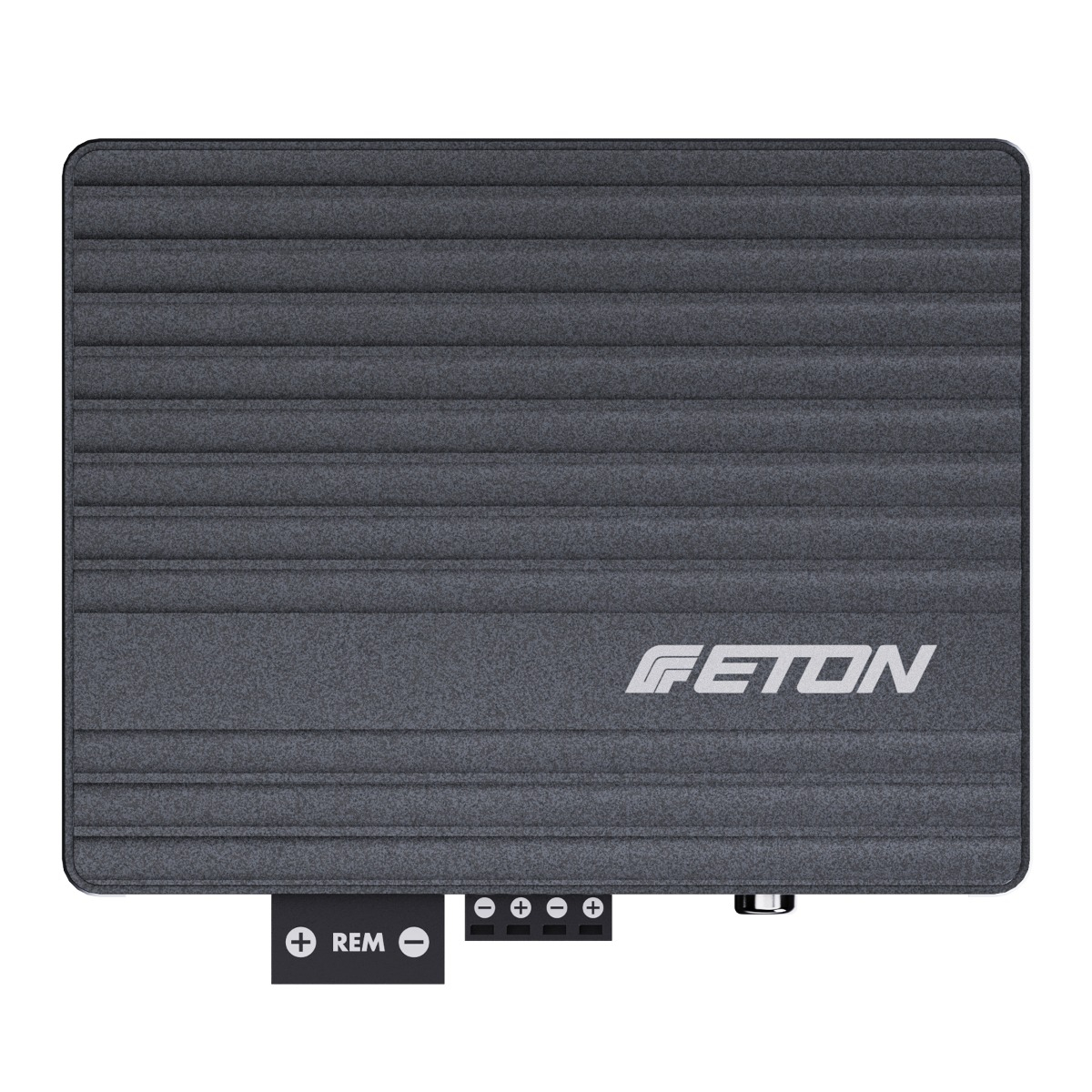

ETON PA 1 Compact Monoblock Amplifier

The ETON PA 1 is a compact mono amplifier for a passive subwoofer. Its 128 × 100 × 45 mm aluminium housing makes it worth considering when a larger amplifier would take up too much room. It delivers 200 W RMS into 4 ohms, 340 W into 2 ohms or 480 W into 1 ohm; the actual output depends on the connected subwoofer load.

A 30 Hz subsonic filter and adjustable 25–250 Hz low-pass filter help set the bass range. The low-pass slope can be set to 12 or 24 dB per octave. A wired level remote is included, while removable connectors and adjustable mounting feet help with installation access.

Choose the PA 1 when you want a dedicated bass amplifier. It is a monoblock subwoofer amplifier, so it is not a substitute for a two- or four-channel amplifier driving full-range door speakers.

Key specifications

• Amplifier type: Mono Class-D subwoofer amplifier

• RMS power at 4 ohms: 1 × 200 W

• RMS power at 2 ohms: 1 × 340 W

• RMS power at 1 ohm: 1 × 480 W

• Bass filters: 30 Hz subsonic; 25–250 Hz low-pass, 12/24 dB per octave

• Level remote: Included

• Dimensions (L × W × H): 128 × 100 × 45 mm

• Weight: 0.73 kg

Connecting it to your vehicle

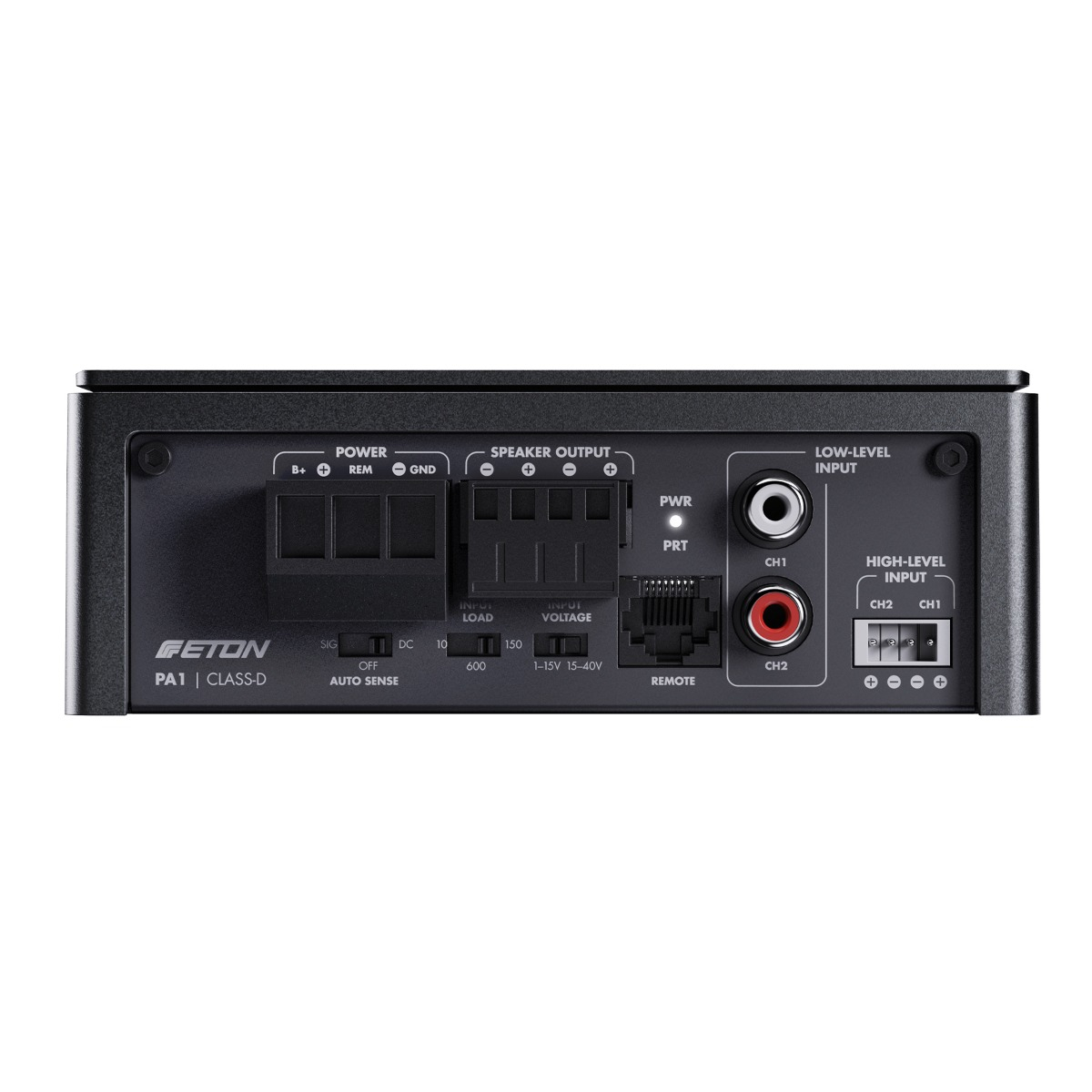

RCA and high-level inputs allow connection to suitable aftermarket stereos or factory speaker signals. Adjustable high-level voltage and input impedance help match the source, and signal/DC detection can switch the amplifier on automatically. These features do not make it a universal plug-and-play fit: a vehicle-specific interface or wiring adaptor may still be required.

Motorquip can check the radio, any factory amplifier, speaker impedance, cable route, mounting space and ventilation before recommending the installation. These amplifiers are for compatible 12 V vehicle systems; start-stop operation is supported within the stated 8.5–15.5 V supply range. They are not direct 24 V truck amplifiers.

Supply and installation

The displayed price is for the amplifier supplied only, including VAT. Installation, power wiring, vehicle interfaces and any additional speakers or subwoofer are quoted separately.
